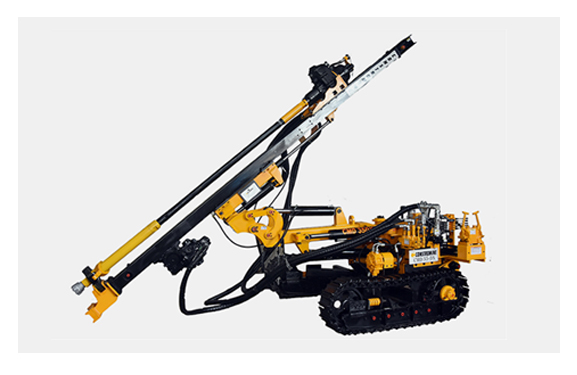

Rock Drilling Machine
Rock Drilling Machine Manufacturers and find Latest Price in India
Rock Drilling Machine in India| Rock Drilling Equipment from India
Constromine Equipment Private Limited are providing the new and unique technological rock drilling machine manufacturers and suppliers in India. This machine and its equipment are specially used for making holes in the rock and basically used for mining, construction and other industrial operations also. These machines are highly used in the outside environmental use and that’s why we have used pure form of raw materials in these machines such as high carbon steel or alloy steels such as high-speed steel (HSS).
The additional elements in these machines such as tungsten carbide are used for improving durability. We have used new latest technologies such as thermal drilling technologies, battery-powered drilling equipment and advanced drilling automation that can improves the overall working mechanism also. Let’s check out its various kind types, its working mechanisms, using benefits and new features with certain applications!
Types of our Rock Drilling Machines
One of the former rock drilling equipment manufacturers and suppliers in India, we are providing the multiple types of rock drilling machines and equipment such as:
- Rock Drilling Machine: These machines are used for drilling into hard rock formations in industries like mining and oil and gas exploration. Their rotary mechanism drills and grinds the rock, combined with high pressure. Advanced hydraulic systems, including automated drilling processes, monitor drill performance and material depth.
- Percussion Drilling Machine (Hammer Drilling): These machines are used for drilling in softer rock formations, typically in groundwater exploration and small-scale mining. The repeated hammering action breaks the rock into small pieces, working in tandem with rotary action for efficient drilling. Hydraulic hammers offer higher impact force with lower fuel consumption in emergencies. Advanced vibration dampening reduces vibrations and extends machine lifespan.
- DTH (Down-the-Hole) Drilling Machine: These machines are used in heavy-duty industries like mining, quarrying, and construction where deep and precise drilling is required. They use a pneumatic hammer that drives the drill bit from the bottom of the hole, improving the penetration rate and reducing vibrations. Premium models combine rotary and hammering actions for increased flexibility in handling softer materials.
- Top Hammer Drilling Machine: These machines are used in harder rock applications such as mining, tunneling, and construction. They use percussive techniques where a hammer strikes the drill rod, causing the bit to break the rock. Modern models integrate wireless monitoring systems, allowing operators to remotely control and monitor drilling operations in real-time. Durable materials ensure the machines can withstand various external conditions.
Technical Specifications of our Rock Drilling Machines
For more information about our Rock Drilling Machine, we have mentioned below a technical sheet such as:
| Parameter | Rotary Drilling Machine | Percussion Drilling Machine (Hammer Drilling) | DTH (Down-the-Hole) Drilling Machine | Top Hammer Drilling Machine |
|---|---|---|---|---|
| Primary Use | Mining, oil & gas exploration, geothermal drilling | Groundwater exploration, small-scale mining | Deep drilling in mining, quarrying, and construction | Hard rock drilling in mining, tunneling, and construction |
| Drilling Mechanism | Rotating drill bit grinds through rock | Hammering motion breaks rock into smaller pieces | Pneumatic hammer drives drill bit at the bottom of the hole | Percussive strikes combined with rotating motion |
| Drilling Depth (Typical) | Up to 10,000 meters | 100–300 meters | 2,000–3,000 meters | 100–500 meters |
| Bit Types | Tricone, PDC (polycrystalline diamond compact) | Chisel, Cross-bit, Button bit | Tungsten-carbide button bits | Threaded button |
| Drilling Diameter (mm) | 150–450 | 50–150 | 90–250 | 76–200 |
| Drilling Speed (m/hr) | 10–30 | 3–10 | 15–50 | 20–40 |
| Hammer Impact Force (kN) | Not Applicable | 10–30 | 20–60 | 20–50 |
| Rotational Speed (RPM) | 40–100 | 50–120 | 70–150 | 100–200 |
| Air Pressure (bar) | Not Applicable | 7–10 | 10–25 | 5–8 |
| Bit Wear Rate (mm/hr) | 0.5–1.5 | 1–2 | 0.5–1 | 0.8–1.5 |
| Energy Consumption (kW/hr) | 200–500 | 10–50 | 50–150 | 80–200 |
| Noise Level (dB) | 70–85 | 60–75 | 85–100 | 70–90 |
| Machine Weight (tons) | 20–150 | 1–5 | 5–20 | 3–10 |
| Material | PDC, Tricone | Tungsten Carbide | Tungsten Carbide | Tungsten-Carbide Coated |
Features and Benefits of using our Rock Drilling Machines
As a leading rock drilling equipment suppliers in India, our all types of machines gives higher performance due to its added of multiple features and benefits such as:
- Higher Efficiency and Performance: Modern rock drilling machines feature powerful hydraulic or pneumatic systems that deliver exceptional torque and impact energy. These features increase drilling speed, reduce cycle time, and boost productivity.
- Durable Construction: Constructed from high-quality materials such as cast iron, high-speed galvanized steel, and carbide, these machines are coated with hot-dip galvanization for corrosion resistance, extending their lifespan and making them suitable for outdoor use.
- Safety Features: Multiple safety features enhance accuracy and smooth workflow in complex operations. Automatic shut-off systems, vibration-dampening technology, and smart sensors minimize the risk of accidents.
- Hybrid Power Systems: Hybrid electric and diesel power systems reduce emissions and increase machine capacity. Lower fuel consumption minimizes costs and greenhouse gas emissions, improving performance and productivity.
Applications of our Rock Drilling Machines
These all types of rock drilling machines and equipment are majorly used in multiple types of applications such as:
- Mining and mineral extraction in tough terrains
- Tunneling for transportation, utilities, and water pipelines
- Geothermal energy system and heat pump installations
- Foundation drilling for skyscrapers and bridges construction
- Oil and gas exploration in remote locations
- Quarrying for stone, marble, and aggregate production
- Metro and urban infrastructure like subway systems
- Ground stabilization and reinforcement in unstable terrains
- Space mining on the Moon and Mars surfaces
- Deep-sea drilling for underwater resources and research
One of the leading rock drilling machine manufacturers and suppliers in India, we as Constromine Equipment Private Limited are offering the highly demanded rock drilling equipment which are highly used for drilling the hole in the rocks. These are made with pure form of materials for increasing the durability structure and new connected sensors helps for increasing the smooth performance. For more information, contact us today!
