Silent Feature
- Without diaphragm Accumulator
- 2 Stroke selector
- BPM Adjuster
- Low noise Frame
- Vibration Damping System
- Anti-abrasive steel for Bottom Plate
- Auto Greasing Unit -Optional

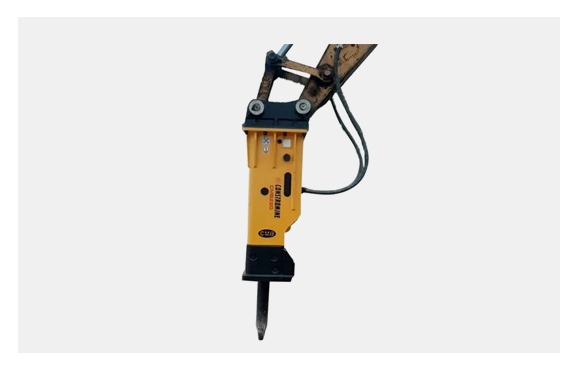

Hydraulic Rock Breaker Manufacturers
Find Hydraulic Rock Breaker Manufacturers in India|Hydraulic Rock Breaker Manufacturers in India, Suppliers of Hydraulic Rock Breaker in India
Hydraulic Rock Breaker Manufacturers in India|Hydraulic Rock Breaker in India|Rock Breaker Manufacturers in India,Suppliers in India
Constromine Equipment-Hydraulic Rock Breaker Manufacturers in India, Suppliers of Hydraulic Rock Breaker in India by CONSTROMINE Equipment. We are leading Hydraulic Rock Breaker Manufacturers in India find best Hydraulic Rock Breaker in India. Also Rock Breaker Manufacturers in India, Rock Breaker in India. Our Hydraulic Rock Breakers are used for Breaking rock for mining ore extraction and processing, Road construction and maintenance in rocky terrains or surfaces, Tunnel excavation, including shafts and underground projects etc
We are leading Hydraulic Rock Breaker Manufacturers, Hydraulic Rock Breaker Manufacturers in India, Hydraulic Rock Breaker Suppliers, Hydraulic Rock Breaker Suppliers in India, Find Hydraulic Rock Breaker Price in India, Hydraulic Rock Breaker in India, Best Hydraulic Rock Breaker in India by Constromine Equipment Private Limited
Top Hydraulic Rock Breaker Manufacturers in India, Hydraulic Rock Breaker Suppliers in India by Constromine Equipment. As we are leading Hydraulic Rock Breaker Manufacturers in India offer best quality Hydraulic Rock Breaker in India, Contact Us Now! Hydraulic rock breaker manufacturers in India providing innovative breaking solutions. Explore our range of hydraulic rock breakers designed for efficiency and reliability.
As we are leading Hydraulic Rock Breaker Manufacturers in India we are offering Hydraulic Rock Breaker in India, for the various application used our Hydraulic Rock Breaker. Contact Us now for more details of Hydraulic Rock Breaker or Rock Breaker Manufacturers India.
Constromine Equipment Private Limited is a well-known hydraulic rock breakers manufacturers and suppliers in India, are offering the best quality of hydraulic rock breaker. This hydraulic rock breaker is highly demanding from multiple types of industrial sectors due to it smooth working mechanism and more power. We have used strong types of materials in these rock breakers for giving more performance.
Types of our Hydraulic Rock Breakers
As prominent hydraulic rock breakers manufacturers in India, we have launched some types of models which can be used as per the requirement such as:
- CMB 220: Designed for medium to heavy-duty applications, this model delivers superior performance in quarrying and mining. Optimized impact frequency and energy output break large rocks efficiently. An advanced energy recovery system enhances power and reduces fuel consumption. A smart monitoring system tracks real-time performance and predicts maintenance needs. Ideal for large-scale excavation, deep rock cutting, and tunneling.
- CMB 75: Perfect for small to medium excavators, this model excels in urban demolition and road construction. Low noise and vibration levels make it suitable for environmentally sensitive and densely populated areas. Automatic lubrication extends tool life and reduces maintenance costs. Intelligent hydraulic flow control optimizes efficiency and minimizes wear. Effective for bridge dismantling, foundation removal, and controlled rock excavation in residential areas.
- Without diaphragm Accumulator
- 2 Stroke selector
- BPM Adjuster
- Low noise Frame
- Vibration Damping System
- Anti-abrasive steel for Bottom Plate
- Auto Greasing Unit -Optional
- CMB 140: A mid-range hydraulic breaker engineered for high performance in construction and mining. High-quality chisel and cylinder construction ensures durability. An anti-blank firing system prevents damage, and optimized hydraulic control improves fuel efficiency and stability. Smart energy management enhances power distribution and reduces environmental impact. Well-suited for underground mining, large-scale infrastructure projects, and hard-rock trenching.
- Without diaphragm Accumulator
- 2 Stroke selector
- BPM Adjuster
- Low noise Frame
- Vibration Damping System
- Anti-abrasive steel for Bottom Plate
- Auto Greasing Unit -Optional
Hydraulic Rock Breaker CMB220
| Specification | |
|---|---|
| Operating Weight | 1860 Kgs. |
| Body Type | Closed |
| Impact Rate | 350—500 bpm |
| Operating Pressure | 160—180 Bar |
| Oil Flow | 120—180 Lpm |
| Tool Diameter | 140 mm |
| Hose Diameter | 1” |
| Carrier Weight | 20—26 Ton |
Hydraulic Rock Breaker CMB75
Silent Feature
| Specification | |
|---|---|
| Operating Weight | 350 Kgs. |
| Body Type | Closed/Open |
| Impact Rate | 500– 800 bpm |
| Operating Pressure | 120—150 Bar |
| Oil Flow | 50 - 90 Lpm |
| Tool Diameter | 75 mm |
| Hose Diameter | 1/2” |
| Carrier Weight | 6 - 9 Ton |
Hydraulic Rock Breaker CMB140
Silent Feature
| Specification | |
|---|---|
| Operating Weight | 890 Kgs. |
| Body Type | Closed |
| Impact Rate | 350—700 bpm |
| Operating Pressure | 150 - 170 Bar |
| Oil Flow | 80 - 100 Lpm |
| Tool Diameter | 100 mm |
| Hose Diameter | 3/4” |
| Carrier Weight | 11 - 16 Ton |
Technical Specifications of our Hydraulic Rock Breaker
For more clarification about our hydraulic rock breaker, we have mentioned below a technical sheet such as:
| Specifications | CMB 220 | CMB 75 | CMB 140 |
|---|---|---|---|
| Operating Weight | 1860 Kgs. | 350 Kgs. | 890 Kgs. |
| Body Type | Closed | Closed/Open | Closed |
| Impact Rate | 350—500 bpm | 500– 800 bpm | 350—700 bpm |
| Operating Pressure | 160—180 Bar | 120—150 Bar | 150 - 170 Bar |
| Oil Flow | 120—180 Lpm | 50 - 90 Lpm | 80 - 100 Lpm |
| Tool Diameter | 140 mm | 75 mm | 100 mm |
| Hose Diameter | 1” | 1/2” | 3/4” |
| Carrier Weight | 20—26 Ton | 6 - 9 Ton | 11 - 16 Ton |
| Chisels Type | Standard moil, blunt, chisel, and others | Moil and blunt | Moil, blunt, and chisels |
| Temperature Range (°C) | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C |
| Hydraulic Hose Size | 1" / 1.5" | 1" | 1.5" |
| Sound Level (dB) | 125 dB(A) | 120 dB(A) | 122 dB(A) |
| Operating Voltage | 12V / 24V DC | 12V / 24V DC | 12V / 24V DC |
| Grease Capacity | 1.5 kg (Auto-lube) | 0.5 kg (Auto-lube) | 1 kg (Auto-lube) |
Features and Benefits of our Hydraulic Rock Breaker
As a dominant hydraulic rock breaker suppliers in India, our all types of machines gives higher performance due to it’s added of multiple features and benefits such as:
- Compact Design: Designed with a compact structure for tight or confined workspaces, allowing for easier maneuverability and transport.
- Quick Attachment Change: A quick coupler system enables fast and simple attachment changes, minimizing downtime and enhancing productivity.
- Automatic Lubrication System: Ensures continuous and optimal lubrication, reducing maintenance time and extending tool lifespan.
- Low Noise Levels: Operate at lower decibel levels than pneumatic breakers, creating a safer and more comfortable working environment.
- Integrated Auto-Stop Feature: Automatically disengages when the tool is not in contact with material, preventing wear and tear, conserving energy, and reducing operating costs.
- Shock Absorption Technology: Minimizes impact on the host machine, reducing strain and extending its lifespan while improving operational efficiency.
Applications of our Hydraulic Rock Breaker
Being the best hydraulic rock breaker suppliers in India, these all types of models gives higher performance in multiple types of applications such as:
- Demolition of concrete and reinforced structures in construction.
- Excavation and removal of hard rock in mining projects.
- Breaking rock for mining ore extraction and processing.
- Road construction and maintenance in rocky terrains or surfaces.
- Trenching for utility installations like pipelines and cables.
- Quarrying operations for extracting aggregates from rock deposits.
- Digging foundations in rocky and uneven terrain conditions.
- Tunnel excavation, including shafts and underground projects.
- Demolition of bridge abutments and related infrastructure works.
- Asphalt pavement removal during road renovation or repairs.
As a former hydraulic rock breaker manufacturers and suppliers in India, we as Constromine Equipment Private Limited are providing the best quality of hydraulic rock breaker. These hydraulic rock breakers are highly used in multiple types of applications due to its working mechanisms. We have used strong raw materials in these machines to perform more in the any kind of outer environment and gives more performance. Contact us today for more information!
